Model | Nominal Voltage | No Load | At Maximum Efficiency | At Stall |
Speed | Current | Speed | Current | Torque | Output | Eff | Current | Torque |
| r/min | A | r/min | A | mNm | W | % | A | mNm |
RS-997SH-05031 | 12VDC | 2750 | 0.42 | 2357 | 2.45 | 81.15 | 19.99 | 69.4 | 14.4 | 567.2 |
| RS-997SH-08509 | 12VDC | 9800 | 2.12 | 8598 | 16.35 | 141.07 | 127.02 | 74.2 | 102.3 | 1150.4 |
| RS-997SHF-06320DMR | 36VDC | 13700 | 1.05 | 12139 | 8.17 | 175.68 | 223.32 | 75.9 | 63.5 | 1542.5 |
| RS-997SHF-085081IM | 28VDC | 24000 | 3.84 | 20115 | 19.67 | 170.01 | 358.15 | 65.2 | 101.8 | 1050.2
|

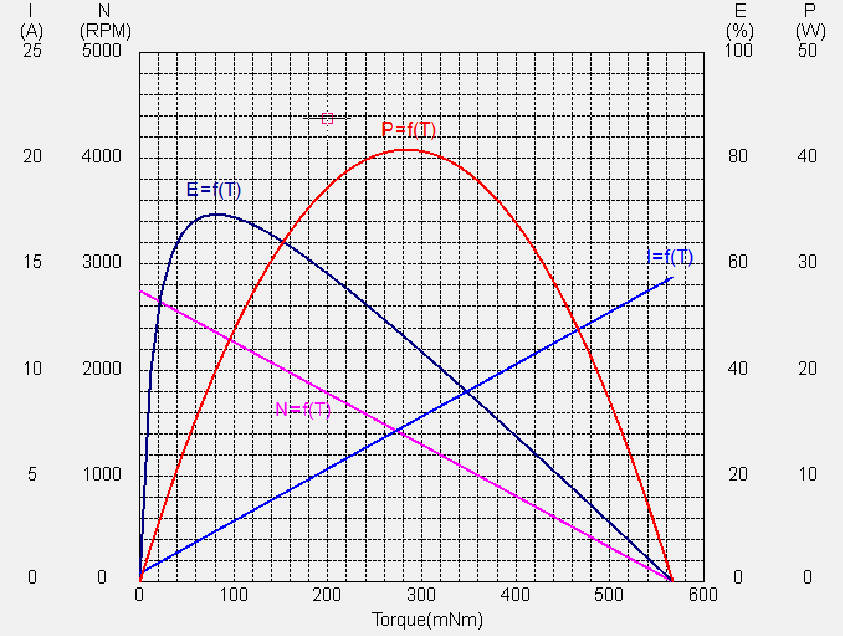

Remarks：Click on the motor model to get motor performance curve.
Above are part of our existing products, can't list all as layout space is limited,
we can customized the voltage, speed, current, torque according to your request.
1mN.m≈10.2g.cm≈0.142oz.in
