产品名称：
RS-7512H

Listing date: 2017-07-28

Output power: 50~200W (approx.)

Weight: 281g (approx.)

Typical use: household appliances > hairdryer, coffee machine, hand vacuum cleaner, sewing machine

Basic structure: SECD (electrolytic zinc plating) case, SECD (electrolytic zinc plating) end cover

Household appliances > hairdryer, coffee machine, hand vacuum cleaner, sewing machine

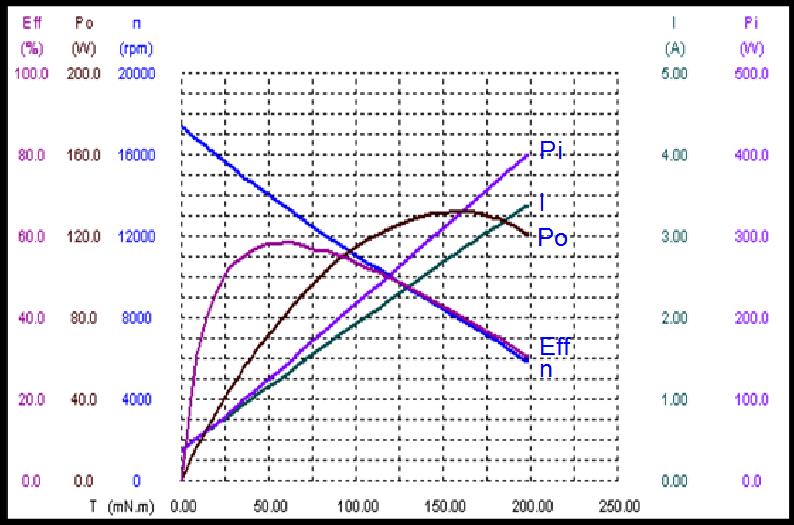

Motor performance map

RS-7512H

Model	Nominal Voltage	No Load		At Maximum Efficiency					At Stall
	Nominal Voltage	Speed	Current	Speed	Current	Torque	Output	Eff	Current	Torque
	VAC	r/min	A	r/min	A	mNm	W	%	A	mNm
RS-7512SHF-2066	100	19657	0.48	14828	1.72	69.54	105.37	69.57	7.57	342.8
RS-7512SHFC2J2-09250R	230	10921	0.1	8024	0.34	49.98	40.25	57.2	1.15	243.79
RS-7512SH-1790D	115	17348	0.37	13283	1.31	61.46	83.3	58.54	4.5	285
RS-7512SHFC2J2-14144RD	230	18553	0.29	13592	1.15	102.73	143.33	60.59	3.83	407.19

Remarks：Click on the motor model to get motor performance curve.

Above are part of our existing products, can't list all as layout space is limited,

we can customized the voltage, speed, current, torque according to your request.

1mN.m≈10.2g.cm≈0.142oz.in

Outline drawing of motor unit

Custom

Item	Customized Options
1	EMI suppression	chokes
		capacitors
		varistor
2	Built in components	PTC
		thermostate protection
		cooling fan
3	Shaft processing	knurling
		d-cut
		spline
		step shaft
		double output shaft
4	Shaft-mounted components	gear
		eccentric wheel
		belt pulleys
5	Multiple material choice	staninless steel
		ball bearing
		brush cage commutating system
		precious metal brush
		magnet wire
		Neodymium magnets
		any others

Factory

Established in 2003 at Shenzhen, Chengfang Motor is an National Hi-Tech Enterprise focused on PMDC motor designer and manufacture, it’s major products including EVP motor, ETC motor, ELS motor and vacuum cleaner motor .

Chengfang's team consist of talents and experts in Electrical Engineering, Mechanics, Measurement & Control Technology, Metal Processing, Industry Automation and Business Administration.Products range from Low Voltage DC motor to High Voltage DC motor with diameter of 2(φ24mm)、3(φ28mm)、5(φ36mm)、7(φ42mm) and 9(φ52mm). Annual output 25 million pcs with annual turnover 40 million USD.
