产品名称:

RS-790H/795H

Listing date: 2017-07-29

Output power: 10~150W (approx.)

Weight: 387g (approx.)

Typical use: household appliances > coffee machine, mixer

Basic structure: SECD (electrolytic zinc plating) case, SECC (electrolytic zinc plating) cover end


RS-790H/795H

Coffee machine, mixer, electric drill, electric circular saw, engine starter

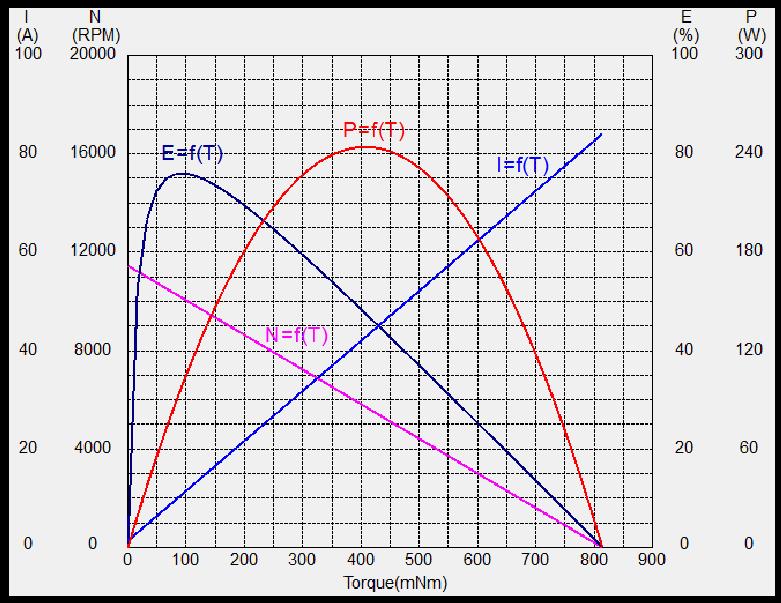

Motor performance map

Model

Nominal

Voltage

No Load

At Maximum Efficiency

At Stall

Speed

Current

Speed

Current

Torque

Output

Eff

Current

Torque

r/minAr/minAmNmW%AmNm

RS-795PH-4250RBL

12VDC32300.2328371.6649.8214.8274.212.1496.1
RS-790SHVC2J2-42128R24VDC49300.2143871.7167.7531.1376.513.7615.1
RS-795SHF-4738RD18VDC64500.3557482.8765.7139.5576.623.5604.5
RS-790SH-8018R12VDC175002.211528715.2283.46133.6173.3105.1660.7


RemarksClick on the motor model  to get motor performance curve.

 Above are part of our existing products, can't list all as layout space is limited,

we can customized the voltage, speed, current, torque according to your request.



1mN.m≈10.2g.cm≈0.142oz.in


Outline drawing of motor unit

RS-790H/795H
