产品名称:

RS-770H/775H

Listing date: 2017-07-29

Output power: 20~150W (approx.)

Weight: 345g (approx.)

Typical use: electric blinds for household appliances >

Electric tools > electric drill, garden tools, electric circular saw

Basic structure: SECD (electrolytic zinc plating) case, SECC (electrolytic zinc plating) cover end


RS-770H/775H

Electric shutters, electric drills, garden tools, electric circular saws

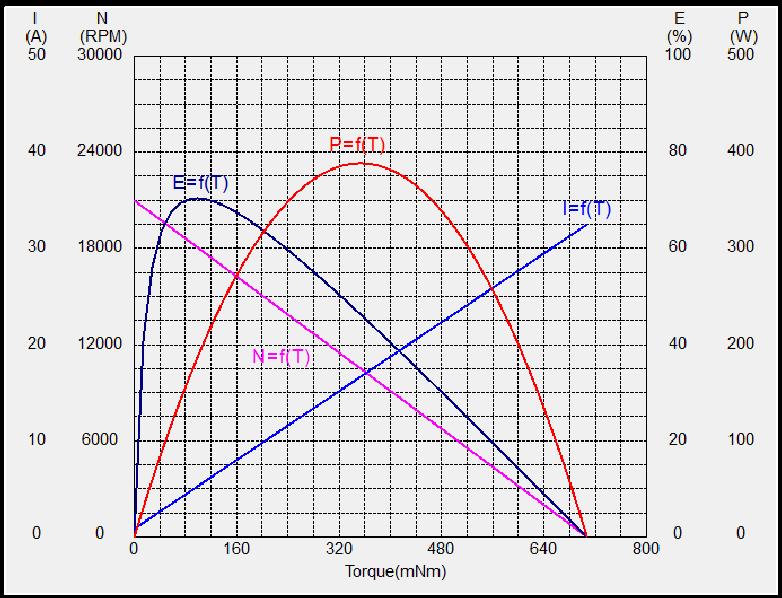

Motor performance map

Model

Nominal

Voltage

No Load

At Maximum Efficiency

At Stall

Speed

Current

Speed

Current

Torque

Output

Eff

Current

Torque

r/minAr/minAmNmW%AmNm

RS-775SH-4537RBL

12VDC47400.4840082.6350.1921.0766.814.4325.1
RS-775SHFV-5032RD22VDC110000.6797425.1984.8486.5575.840.2742.1
RS-775SHFV-4052RD36VDC110500.3898063.1280.1882.3476.423.6712.1
RS-775PHFC2J2-6025R-R24VDC163001.05144098.4495.57144.2175.161.2824.5


RemarksClick on the motor model  to get motor performance curve.

 Above are part of our existing products, can't list all as layout space is limited,

we can customized the voltage, speed, current, torque according to your request.



1mN.m≈10.2g.cm≈0.142oz.in


Outline drawing of motor unit

RS-770H/775H
